All About Exhaust Flex Pipes (Flex Bellows)

Views: 2     Author: Site Editor     Publish Time: 2018-08-22      Origin: Site

Figured I pop this here so in the future people have something to reference to when trying to understand different types of flex pipes.

What do Flex Pipes do?
1. Reduction of the vibration generated by the engine (especially for vehicles with transverse mounted engines and turbo engines)
2. Noise reduction
3. Heat Isolation
4. Prevention of hardness in exhaust systems
5. Compensation of thermal expansion

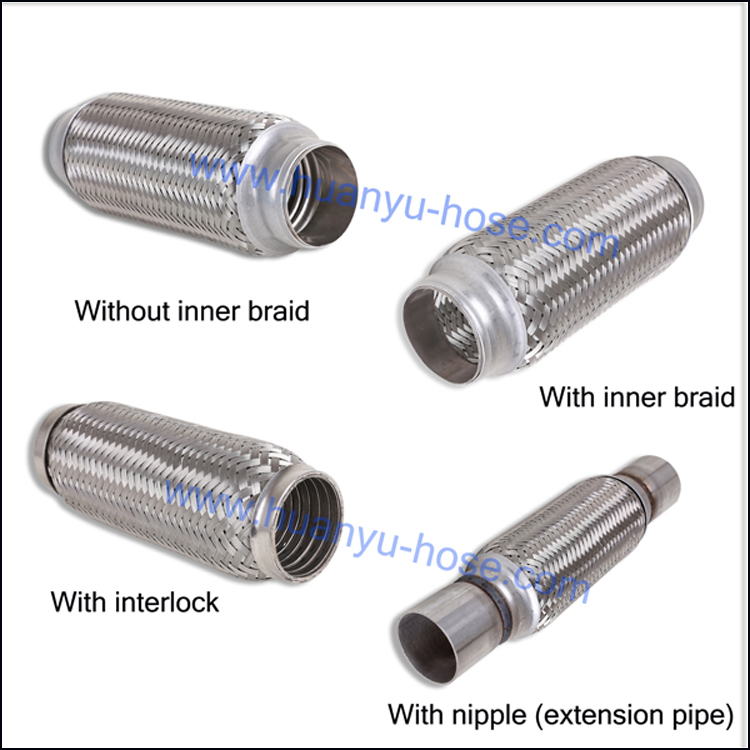

All flex pipes have a braid cover outside, usually with stainless steel. However, there are 3 different types of flex pipes, based on the construction of the interior.

Non-Lined Flex Pipes
Used mostly on older cars, as the name suggests, theres no lining inside, which can cause extra "whistling noise" (ie: worse than the whistling noise you already get from some SS headers)

Braid Lined Flex Pipes
As name suggests, this type of flex pipes have an internal braid to cover the inside, this allows a lower noise level and a higher heat resistance, especially on engines with turbos.

Interlock-lined Flex Pipes
Those flex pipes have an interlock liner made from a stainless steel expandable hose instead of braid like above. This type of Flex pipe reduces noise level even further, and can tolerate even more movement in the exhaust system.

Hope this helps.
