Different Kinds of Metal Hoses


Metal hoses are flexible pipes made of different kinds of metal, such as stainless steel, aluminum, zinc, alloy, etc. Metal hoses with different inner and external diameters are suitable for different situations. For example, in bathrooms, the metal hoses we choose for showers often have an inner diameter of about 1mm, but for car exhaust systems, the inner diameter is often over 35mm, and when it comes to machines, the inner diameter may be greatly varied. So, most companies making metal hoses can design their products according to their customers’ requirements.

There are commonly two different kinds of metals hoses: stripwound hoses and corrugated hoses.

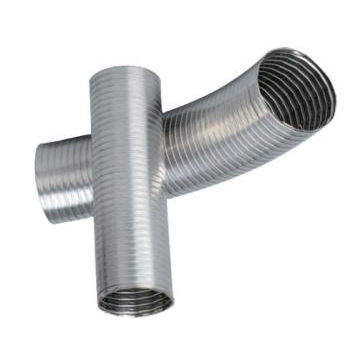

When a steel strip is molded and continuously wound around a mandrel, here comes the simplest type of a stripwound hose.

There are different types of stripwound hoses according to different requirements.

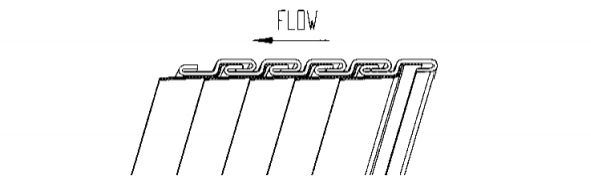

For example, a roughbore interlocked type is the general type of a stripwound hose.

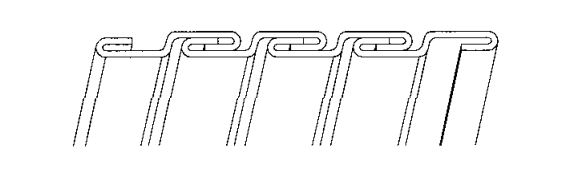

The strips used in this kind of hose have legs interlocked with each other, making it a more rugged construction. However, this also makes the hose not fully leak-tight, so they are often used around an inner tube. This kind of hose is mostly used in open-end gas exhausts.
You can also find smoothbore interlocked ones, which usually add another steel strip inside a rough hose to provide a smooth surface. There are also packed interlocked types, and squarelocked types. All of them are constructed differently and are suitable for different using situations according to varied requirements. You can find some of these products in our company if you want.

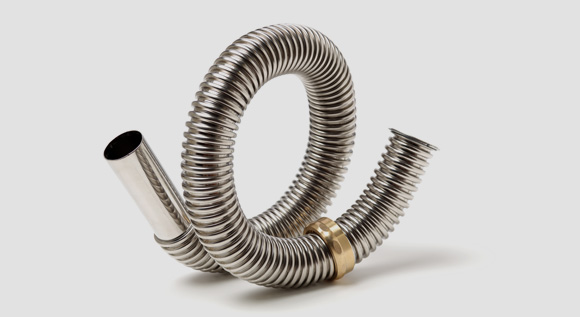

Another kind of metal hose is called corrugated hoses. This kind of hose usually has a metal cover woven by wires in basket wave fashion over a metal tube. The braided sheath is wrapped over the hose from the top to the end tightly to prevent the hose from elongating. Corrugated hoses can be divided into two different kinds: annular corrugations and helical corrugations. Annular corrugations are usually made of a right-handed coil with a constant pitch, while helical corrugations have many equal-spaced parallel corrugations whose main plane is perpendicular to the hose axis. Corrugated hoses can be used under extreme temperature conditions to transfer hot and cooled substances, and are often used as pump connectors.
At our high-end production facility, we fabricate these products using supreme quality raw material that is procured from some of the trustworthy vendors across the country. These products have found wide applications in numerable industries like car, farm machinery, construction machinery, chemical industry, petrochemical plants, etc. owing to their abrasion resistance, unmatched quality and high tensile strength.

Quality being the forte of our firm, we channelize our endeavors to deliver a flawless range at our clients end by attesting the products on guidelines defined by IATF16949. In order to minimize the chances of defects in our offered products, our team of quality analysts rigorously monitors the entire production process right from the stage of procurement of raw material till the products are sent for final dispatch. Backed by a state-of-the-art infrastructural set-up, we have been able to offer customized products to cater to the variegated demands of our clients. Also, we provide product samples to our clients at nominal prices. The flexible payment modes offered to our clients are trouble-free and facilitate financial transactions.
Whether we realize it or not, we have to admit that all the kinds of metal hoses play important roles in our daily life, and choosing a right metal hose can provide great convenience for our life.
