High Quality Flexible Pipe

What Are Flexible Pipes?

Exhaust Flexible Pipe is a metallic tubular element used to connect different components of the exhaust system. As the name suggests, using a flex pipe will give the exhaust system some flexibility. The motor of the exhaust system is mounted transversely, so it will vibrate violently when accelerating. Using a flex pipe will absorb most of the vibrations so as to protect the whole system from breakage. Otherwise, there will be an exhaust leak inevitably.
As a metallic pipe touching rain, dust, and many kinds of chemical substances every day, sometimes you may find your flex pipe is starting to break down. At first, there may be just a slight leak and will not affect daily driving greatly. However, as time goes on, the leak will become more and more serious, causing greater damages to your

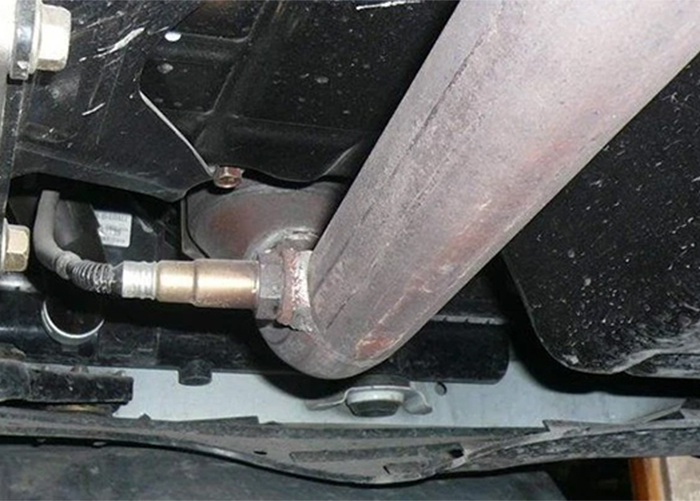

Here is a photo about what a damaged flex pipe looks like.
For most of the times, breakages start from the inside accordion piece, so you may hardly find them. However, when there is a hole on the pipe, mostly caused by a bottoming out of your car, tearing the outer protective mesh, you can find the leak easily because there will be gas smell and the sound of your car will be louder. When your car has these symptoms, driving it will be dangerous. So we suggest that you exam your car exhaust flex pipe frequently and check the engine light before starting your car.


You may be curious about whether it is necessary for you to replace the flex pipe or not. The answer is absolutely YES! OF COURSE! Driving a car with a broken exhaust pipe will be dangerous. Poisonous gases will be exhausted directly, harming drivers and passengers in the car, and will pollute the environment. What’s more, an exhaust leak may also lead to flameout at any time when driving.

So it is necessary for you to change your broken exhaust pipe as soon as possible. Changing a pipe costs no more than half an hour, but driving a car with a damaged pipe may cost you a day to get to your destination.

Firstly, you have to know the right size of the new flex pipe you need, for example, its inner diameter, outer diameter, length. Pipe suppliers may offer you suggestions on what kind of pipe you have to buy according to your car model, but actual measurements would always be better.So what should you do when there is something wrong with your flex pip? We recommend you send your car to the automotive shop for professional examinations and repairs as soon as possible. But if you want to try repairing the pipe yourself, here are some suggestions you can refer to.
Another thing you have to know is that the length of a new pipe should be a little longer than the old one so that it can be welded to the system with enough overlap.
A hacksaw will be helpful for removing the broken flex pipe, and when installing a new pipe, you have to disconnect your battery when welding.
Restart the car after repairing the pipe to see if you have placed the new pipe correctly and firmly is also of great importance.
Replacing a leaking flex pipe looks easy, but actually, you have to consider everything carefully before making decisions like how to choose and where to cut. Any mistake would lead to failure. So sending your car to the automotive shop for professional repairs is the best choice for most people.
Our company provides different kind of exhaust pipes ranging from different materials and styles. You can find the exact pipe you need on our website or just contact us as soon as possible!

Symptoms of an Exhaust Leak

An exhaust leak will disable the whole exhaust system and result in the failing of your car in the emissions test and put yourself in danger. So, it’s of great importance for you to notice the following symptoms which mean that there may be an exhaust leak in your exhaust system.


The exhaust system plays an important role for your car and yourself. Placed at the bottom of your car, the exhaust system can purify the polluted gases from the engine which may do great harm to your health or even take your life since the gases is sometimes odorless but poisonous, and exhaust the gases to the air less harmfully.


Where Will Flexible Pipe Be Used?

  • What is the Minimum Order Quantity (MOQ) ?

    Our MOQ is 50 pieces.
  • How to pay the money?

    The pavement includes 30% T/T in advance, and the balance should be paid against the buyers receive the copy of B/L.
  • What are the acceptable forms of payment?

    PayPal, T/T, Western Union.
  • What are the after-sales services customers can have?

    Customers can return products with quality problems.
  • What is the general packaging?

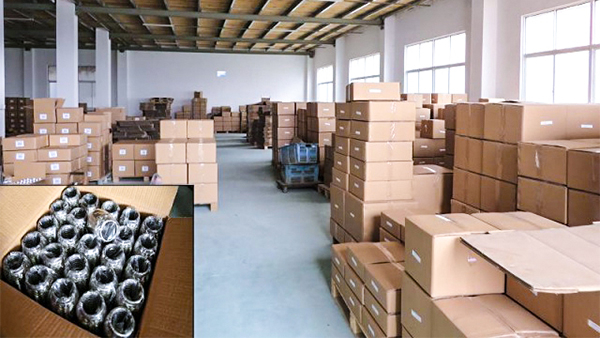

    Generally, each pipe will be covered with plastic bags, and every 25 pieces will be packed in a carton. The cartons can be placed on plates if required. We also accept customized packaging.


How To Install Flexible Pipe?

Helpful Tip: When the noise from the exhaust system of your vehicle gets significantly louder, it means that your flex pipe is about to fail.


01

Elevate your automobile using a car jack to get under it. If you can get underneath it without raising it, then there's no need to use the car jack.


03

Take out the bolts that connect the muffler to the pipe elbow.


05

Remove the gaskets from the flanges that are used to connect the flex pipe to the muffler. Then, use a wire brush to clean the flanges.


07

Get a wrench to loosen the bolts that secure the exhaust pipe and the muffler. By doing this, you will enable those components to have some space to move and allow them to fit better with the new flex pipe.


09

If the flex pipe is twisted or under some tension, adjust the pipe and the muffler to get it straight.


11

Put new bolts in the holes where the flex pipe and the muffler flange are connected. Use a wrench to secure the nuts to the bolts.


02

Find the muffler and the exhaust down pipe. When you have located them, you will be able to see the flex pipe. One end of the flex pipe is attached to a flange on the muffler, while the other end is connected to the exhaust pipe. There is usually a pipe elbow that connects it to the muffler and exhaust pipe.


04

Free the flex pipe from the exhaust pipe by loosening the clamp that keeps them together. Remove the flex pipe from the clamp and take out the clamp, as well.


06

Use a hammer to even out the dents that you may see in the exhaust downpipe. Make sure your pipe is round in order for it to seal your new flex pipe effectively.


08

Coat the end of the exhaust pipe and the muffler gasket with exhaust sealant. After that, slide your new flex pipe over the end of the exhaust pipe and right into the gasket.


10

Place a new clamp on the end of the flex pipe that is next to the exhaust pipe. Use a screwdriver to secure the clamp.


12

Secure all the mounting for the exhaust pipe and the muffler and take out all the plastic ties that came with the flex pipe. Now, you are finally finished installing your new flex pipe to your automobile.

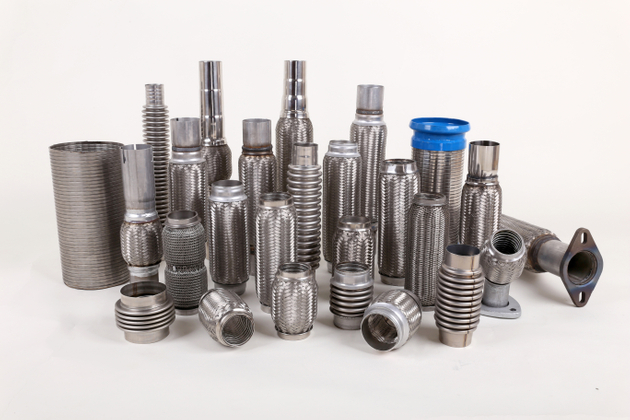

More Flexible Pipes

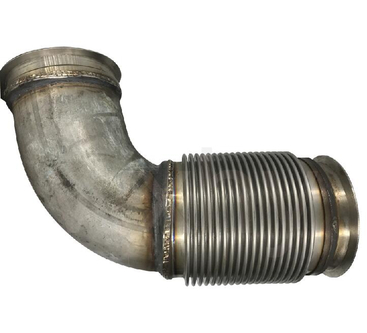

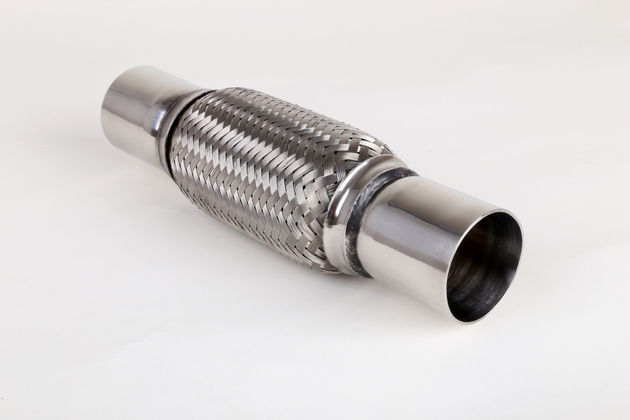

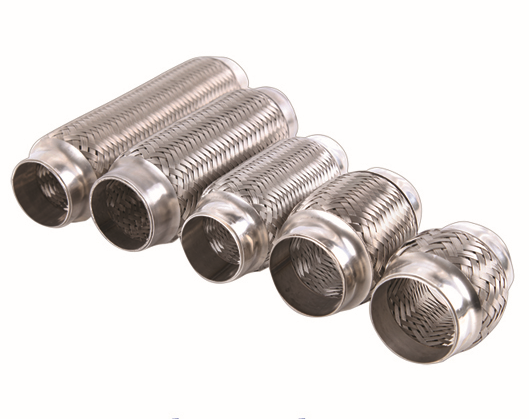

Exhaust flexible pipe is suitable for a wide range of exhaust system. We can make parts with a high degree of flexibility. exhaust flexible pipe is suitable for passenger car and truck.
0
0

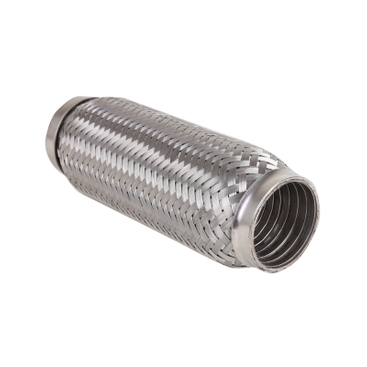

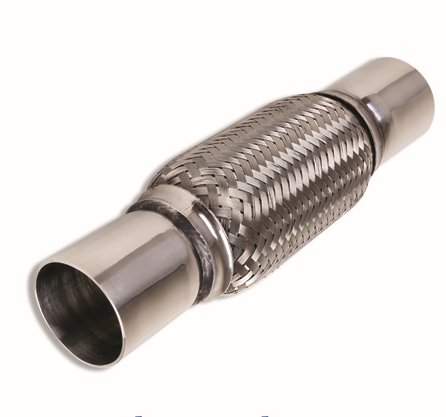

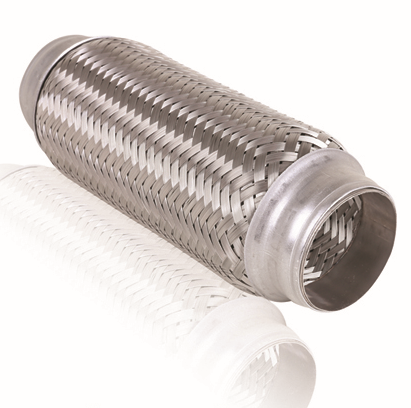

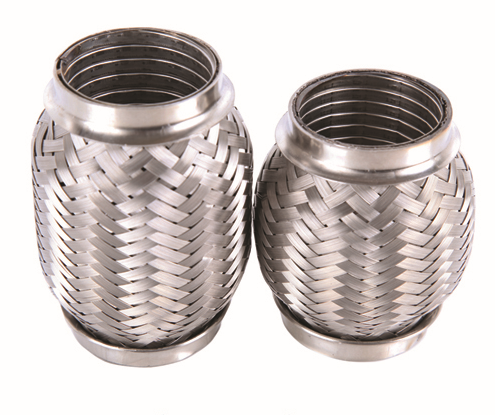

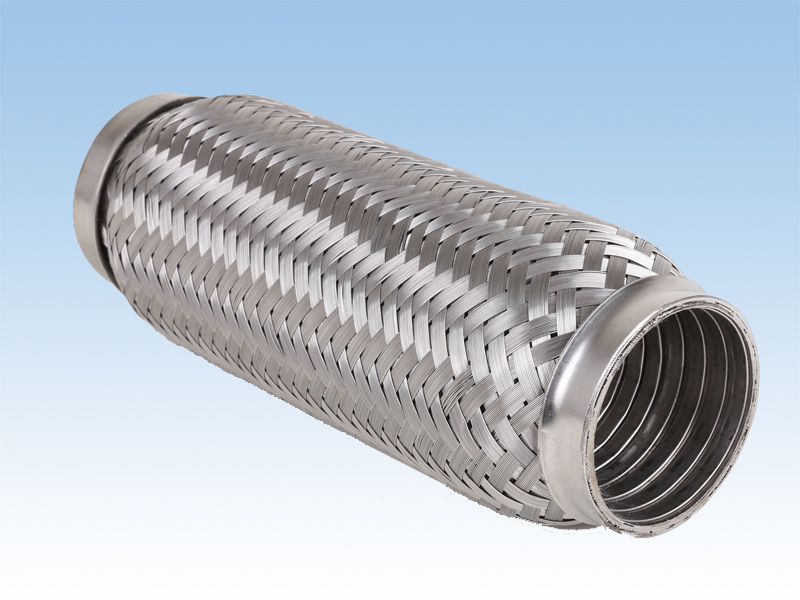

The flexible pipe is made of stainless steel 201 or 304. The flex pipe is with inner braid and wide-brimmed end caps, the end caps is made of stainless steel/ aluminum. galvanized The inner diameter of the pipe for passenger car is 1inch~2.5inch in general. The inner diameter of the pipe for truck is 2.5inch~12inch in general.
0
0

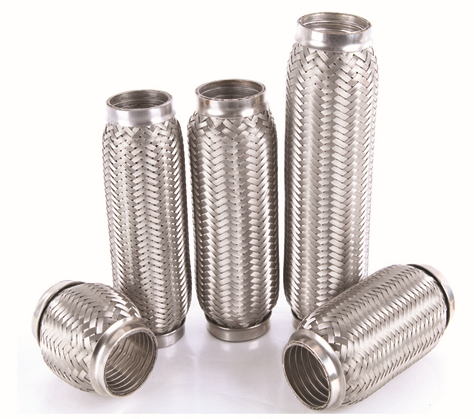

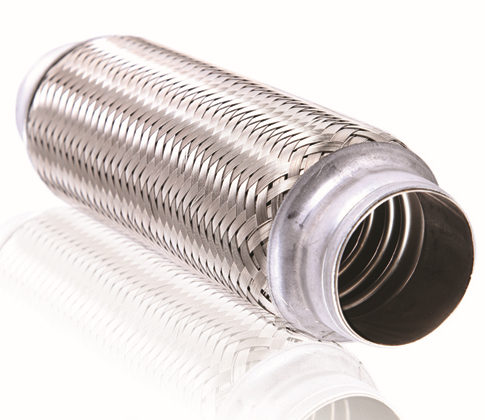

Exhaust flexible pipe is suitable for a wide range of exhaust system. We can make parts with a high degree of flexibility. The inner diameter of the pipe for passenger car is 1inch~2.5inch in general. The inner diameter of the pipe for truck is 2.5inch~12inch in general.
0
0

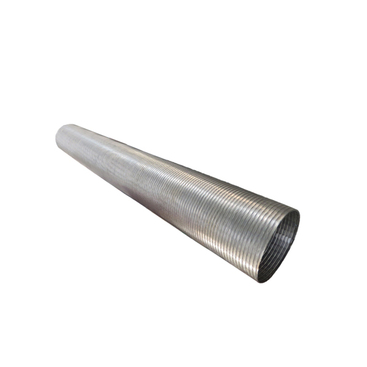

Stainless steel water supply interlocked metal hose under sink water filter offered by China manufacturer wxhy exhaust. Buy Stainless steel water supply interlocked metal hose under sink water filter directly with low price and high quality.
0
0
1. Suitable for a wide range of the tail pipe link. 2. We can make parts with a high degree of flexibility. 3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption. 4. This product is used in exhaust system and high-and low-temperature. 5. It can decrease engine noise and vibration.
0
0
1. Suitable for a wide range of the tail pipe link. 2. We can make parts with a high degree of flexibility. 3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption. 4. This product is used in exhaust system and high-and low-temperature. 5. It can decrease engine noise and vibration.
0
0

Choose Our Flexible Pipes

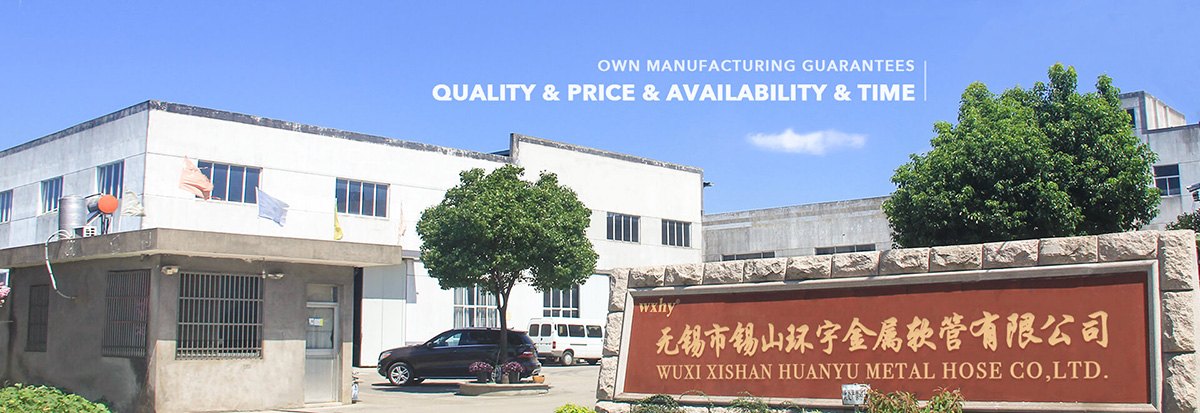

Wuxi Xishan Huanyu Metal Hose Co.,Ltd is a specialized and leading manufacturer of Exhaust Flexible Pipe.Established in 2000,with the development of auto aftermarket in domestic and abroad,we are now exporting about 90% out of total capacity to overseas countries.

Our workshop covers 12000 square meters,with 150 skilled workers,advanced equipments and professional sales team.After continuous efforts,our products have gained good reputation in North America,Europe,Middle east,South-east Asia etc,currently,our annual export amount beyond USD 4 million.With great passion and insistent dedication,we now have passed the certificate of ISO9001 and TS16949.

Our target is to provide premium quality products,competitive market price and better service to out customers.Four points always bear in our mind:Professionalism,Responsibility,Integrity and communication,that's the key to build Win-Win cooperation with worldwide partners.

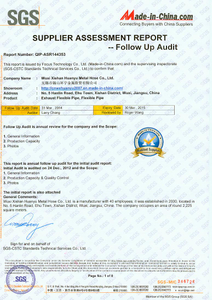

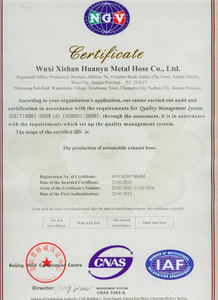

Our Certificate

Technical skills advantages

Unique production technology, low-cost production methods, leading innovation capabilities, strong technical strength, perfect quality control system, rich marketing experience, superior customer service, excellent large-scale procurement skills.


Organizational system advantages

High-quality control system, perfect information management system, loyal customer base, strong financing ability.


Intangible assets advantage

Excellent brand image, good business credit, and aggressive company culture.


The advantage of tangible assets

Advanced production lines, modern workshops and equipment, abundant storage of natural resources, attractive real estate locations, sufficient funds, complete information.


Human resources advantages

Staff with expertise in key areas, motivated staff, strong organizational learning capabilities, and rich experience.


Competitive advantage

Short product development cycle, strong dealer network, good partnership with suppliers, sensitive response to changes in the market environment, leading market share.


More Profession Exhaust Pipes

Stainless steel water supply interlocked metal hose under sink water filter offered by China manufacturer wxhy exhaust. Buy Stainless steel water supply interlocked metal hose under sink water filter directly with low price and high quality.
0
0
1. Suitable for a wide range of the tail pipe link. 2. We can make parts with a high degree of flexibility. 3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption. 4. This product is used in exhaust system and high-and low-temperature. 5. It can decrease engine noise and vibration.
0
0
1. Suitable for a wide range of the tail pipe link. 2. We can make parts with a high degree of flexibility. 3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption. 4. This product is used in exhaust system and high-and low-temperature. 5. It can decrease engine noise and vibration.
0
0
1. Suitable for a wide range of the tail pipe link. 2. We can make parts with a high degree of flexibility. 3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption. 4. This product is used in exhaust system and high-and low-temperature. 5. It can decrease engine noise and vibration.
0
0
1. Suitable for a wide range of the tail pipe link. 2. We can make parts with a high degree of flexibility. 3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption. 4. This product is used in exhaust system and high-and low-temperature. 5. It can decrease engine noise and vibration.
0
0
