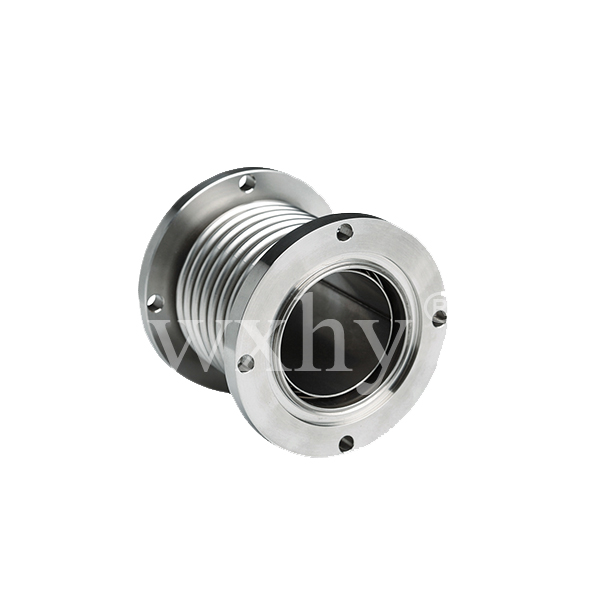

Part number | HYP |
Material | stainless steel 304 or 316L |
Size | ID:1"~120" Len:2"~780" or as requirement |
Construction | bellows+(or braid)+flange |
Fittings | welded on the end of hose according to customers' requirement, a variety of end fitting configurations such as threaded (both NPT and BSP), quick disconnect cam-and groove fittings, fixed and floating flanges (ANSI, PN, BS, JP standards) and other specialty items such as Victaulic and sanitary in a variety of materials in stainless steel, carbon, steel, brass aluminium |
Working pressure | 0~22 Mpa |
Temp range | -200~800 degrees |
Minimum Order | 50 pieces |
Warranty | 2 years |
Packaging | 1piece / carton, cartons to pallet or as customer’s requirement |
Payment Term | within 30days after we got 30% deposit of the goods |
Part number | HYP |
Material | stainless steel 304 or 316L |
Size | ID:1"~120" Len:2"~780" or as requirement |
Construction | bellows+(or braid)+flange |
Fittings | welded on the end of hose according to customers' requirement, a variety of end fitting configurations such as threaded (both NPT and BSP), quick disconnect cam-and groove fittings, fixed and floating flanges (ANSI, PN, BS, JP standards) and other specialty items such as Victaulic and sanitary in a variety of materials in stainless steel, carbon, steel, brass aluminium |
Working pressure | 0~22 Mpa |
Temp range | -200~800 degrees |
Minimum Order | 50 pieces |
Warranty | 2 years |
Packaging | 1piece / carton, cartons to pallet or as customer’s requirement |
Payment Term | within 30days after we got 30% deposit of the goods |
Expansion Joint | ||||||||
Diameter (mm) | Material thickness (mm) | Outer diameter (mm) | Wave distance (mm) | Length (mm) | Bolt number (n) | Flanger diameter (mm) | Each wave displcement (mm) | Working pressure (Mpa) |
80 | 0.5~1.0 | 105 | 14 | 109~207 | 4~6 | 160 | 1.3~0.6 | 0.8~3 |
95 | 0.5~1.0 | 115 | 15 | 119~217 | 6~8 | 180 | 0.9~0.4 | 1.2~3.5 |
110 | 0.5~1.0 | 143 | 16 | 188~268 | 6~8 | 190 | 2.2~0.8 | 0.4~1.6 |
132 | 0.5~1.2 | 168 | 14 | 177~247 | 6~8 | 215 | 2.3~0.7 | 0.3~2.7 |
150 | 0.5~1.5 | 190 | 20 | 180~310 | 8~10 | 250 | 3.0~1.0 | 0.3~1.4 |
174 | 0.5~1.5 | 220 | 20 | 190~250 | 8~10 | 270 | 4.0~1.3 | 0.2~1.7 |
182 | 0.5~1.2 | 210 | 18 | 179~269 | 8~12 | 270 | 1.6~0.7 | 0.6~2.4 |
200 | 0.5~2.0 | 250 | 30 | 235~335 | 8~12 | 310 | 4.1~1.3 | 0.2~3.0 |
215 | 0.8~1.5 | 260 | 25 | 163~238 | 8~12 | 320 | 4.0~1.2 | 0.2~2.0 |
220 | 0.5~2.0 | 290 | 30~50 | 265~370 | 8~12 | 350 | 5.2~2.9 | 0.2~1.6 |
260 | 0.5~2.0 | 340 | 30~50 | 265~370 | 12~16 | 400 | 6.7~3.0 | 0.15~1.2 |
317 | 1.0~2.0 | 357 | 25 | 212~287 | 12~16 | 450 | 6.9~4.9 | 0.3~1.7 |
362 | 1.0~2.0 | 440 | 50 | 375 | 12~16 | 500 | 6.9~3.3 | 0.3~1.7 |
417 | 1.0~2.5 | 497 | 60 | 370 | 12~16 | 560 | 7.5~4.0 | 0.2~1.7 |
507 | 1.0~3.0 | 647 | 100 | 357 | 12~16 | 725 | 12~7.5 | 0.15~1.7 |
514 | 1.0~3.0 | 622 | 70 | 415 | 12~16 | 700 | 10~4 | 0.2~1.6 |
615 | 1.0~3.0 | 721 | 68 | 406 | 12~16 | 800 | 9.8~3.9 | 0.3~1.6 |
706 | 1.5~3.0 | 880 | 106 | 365 | 12~16 | 970 | 15~10 | 0.2~0.8 |
806 | 1.5~3.0 | 880 | 110 | 375 | 16~20 | 970 | 16~10 | 0.2~0.8 |
920 | 1.5~2.5 | 1045 | 74 | 186~334 | 16~20 | 1130 | 11~6 | 0.3~0.8 |
1004 | 1.5~2.5 | 1124 | 86 | 401 | 20~24 | 1215 | 9.5~6.5 | 0.3~0.8 |
1104 | 1.5~2.5 | 1260 | 80 | | 20~24 | 1350 | 9.5~6.5 | 0.2~0.5 |
1204 | 1.5~2.5 | 1374 | 85 | | 20~24 | 1470 | 9.5~6.5 | 0.15~0.45 |
1400 | 1.5~2.5 | 1590 | 95 | | 20~24 | 1680 | 22~13 | 0.1~0.3 |
1600 | 1.5~2.5 | 1790 | 95 | | 20~24 | 1880 | 22~13 | 0.1~0.25 |
Expansion Joint | ||||||||
Diameter (mm) | Material thickness (mm) | Outer diameter (mm) | Wave distance (mm) | Length (mm) | Bolt number (n) | Flanger diameter (mm) | Each wave displcement (mm) | Working pressure (Mpa) |
80 | 0.5~1.0 | 105 | 14 | 109~207 | 4~6 | 160 | 1.3~0.6 | 0.8~3 |
95 | 0.5~1.0 | 115 | 15 | 119~217 | 6~8 | 180 | 0.9~0.4 | 1.2~3.5 |
110 | 0.5~1.0 | 143 | 16 | 188~268 | 6~8 | 190 | 2.2~0.8 | 0.4~1.6 |
132 | 0.5~1.2 | 168 | 14 | 177~247 | 6~8 | 215 | 2.3~0.7 | 0.3~2.7 |
150 | 0.5~1.5 | 190 | 20 | 180~310 | 8~10 | 250 | 3.0~1.0 | 0.3~1.4 |
174 | 0.5~1.5 | 220 | 20 | 190~250 | 8~10 | 270 | 4.0~1.3 | 0.2~1.7 |
182 | 0.5~1.2 | 210 | 18 | 179~269 | 8~12 | 270 | 1.6~0.7 | 0.6~2.4 |
200 | 0.5~2.0 | 250 | 30 | 235~335 | 8~12 | 310 | 4.1~1.3 | 0.2~3.0 |
215 | 0.8~1.5 | 260 | 25 | 163~238 | 8~12 | 320 | 4.0~1.2 | 0.2~2.0 |
220 | 0.5~2.0 | 290 | 30~50 | 265~370 | 8~12 | 350 | 5.2~2.9 | 0.2~1.6 |
260 | 0.5~2.0 | 340 | 30~50 | 265~370 | 12~16 | 400 | 6.7~3.0 | 0.15~1.2 |
317 | 1.0~2.0 | 357 | 25 | 212~287 | 12~16 | 450 | 6.9~4.9 | 0.3~1.7 |
362 | 1.0~2.0 | 440 | 50 | 375 | 12~16 | 500 | 6.9~3.3 | 0.3~1.7 |
417 | 1.0~2.5 | 497 | 60 | 370 | 12~16 | 560 | 7.5~4.0 | 0.2~1.7 |
507 | 1.0~3.0 | 647 | 100 | 357 | 12~16 | 725 | 12~7.5 | 0.15~1.7 |
514 | 1.0~3.0 | 622 | 70 | 415 | 12~16 | 700 | 10~4 | 0.2~1.6 |
615 | 1.0~3.0 | 721 | 68 | 406 | 12~16 | 800 | 9.8~3.9 | 0.3~1.6 |
706 | 1.5~3.0 | 880 | 106 | 365 | 12~16 | 970 | 15~10 | 0.2~0.8 |
806 | 1.5~3.0 | 880 | 110 | 375 | 16~20 | 970 | 16~10 | 0.2~0.8 |
920 | 1.5~2.5 | 1045 | 74 | 186~334 | 16~20 | 1130 | 11~6 | 0.3~0.8 |
1004 | 1.5~2.5 | 1124 | 86 | 401 | 20~24 | 1215 | 9.5~6.5 | 0.3~0.8 |
1104 | 1.5~2.5 | 1260 | 80 | | 20~24 | 1350 | 9.5~6.5 | 0.2~0.5 |
1204 | 1.5~2.5 | 1374 | 85 | | 20~24 | 1470 | 9.5~6.5 | 0.15~0.45 |
1400 | 1.5~2.5 | 1590 | 95 | | 20~24 | 1680 | 22~13 | 0.1~0.3 |
1600 | 1.5~2.5 | 1790 | 95 | | 20~24 | 1880 | 22~13 | 0.1~0.25 |
