Does The Flex Pipe Affect The Catalytic Converter?

In the intricate ecosystem of a modern vehicle's exhaust system, two critical components work in concert to manage emissions, reduce noise, and ensure engine efficiency: the flex pipe and the catalytic converter. While they serve distinct primary functions, the health and operation of one directly and significantly impacts the other. Understanding this relationship is key to maintaining vehicle performance, passing emissions tests, and avoiding costly repairs.

Core Functions: A Brief Overview

Catalytic Converter: This is an emissions control device. Its honeycomb-like internal structure, coated with precious metals (platinum, palladium, rhodium), facilitates chemical reactions that convert harmful exhaust gases—hydrocarbons (HC), carbon monoxide (CO), and nitrogen oxides (NOx)—into less harmful substances like water vapor (H₂O), carbon dioxide (CO₂), and nitrogen (N₂).

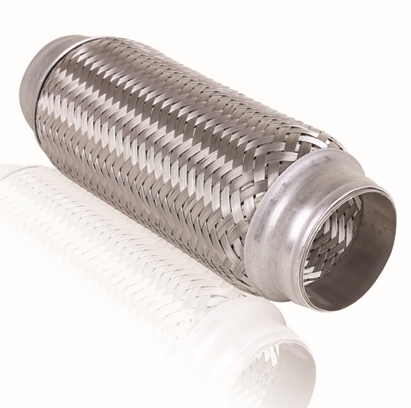

Flex Pipe: This is a mechanical component designed to absorb movement and vibration. It is a short, flexible section of the exhaust pipe, typically made from braided metal or a corrugated design, located between the engine and the rigid exhaust piping (often just before or after the catalytic converter, depending on the vehicle layout). Its primary job is to protect the exhaust system from the natural rocking and torque of the engine, as well as from road shock and thermal expansion.

How the Flex Pipe Directly Affects the Catalytic Converter

The influence of the flex pipe on the catalytic converter is multifaceted, ranging from physical protection to chemical process integrity.

1. Physical Protection and Stress Prevention:

This is the most direct impact. A properly functioning flex pipe acts as a sacrificial shock absorber. Without it, the engine's vibrations and movement would be transferred directly to the rigid exhaust components, including the catalytic converter. This constant stress can lead to:

Cracking of the Catalytic Converter's Ceramic Monolith: The fragile internal substrate can fracture from physical shock and stress.

Failed Welds and Leaks: The connections at the inlet or outlet of the catalytic converter can crack or break.

Physical Damage from Impact: A rigid, stressed exhaust system is more susceptible to damage from road debris or speed bumps.

A failed flex pipe, therefore, puts the catalytic converter at immediate risk of physical damage, which is often irreversible and necessitates replacement.

2. Maintaining Optimal Exhaust Flow (Backpressure):

The catalytic converter requires a specific range of exhaust backpressure to function correctly. A ruptured or leaking flex pipe creates an upstream exhaust leak. This leak allows exhaust gases to escape before they reach the catalytic converter.

Result: The converter receives less exhaust volume, and crucially, the oxygen sensor(s) located before the converter (the upstream O2 sensor) reads a false lean condition (excess oxygen from the leak). The engine control unit (ECU), responding to this faulty data, will enrich the fuel mixture unnecessarily. This dumps unburned fuel into the exhaust.

Catalytic Converter Impact: The converter is now overloaded with excess hydrocarbons (fuel). It must work much harder, generating extreme internal heat. This can lead to catastrophic meltdown of the ceramic substrate, effectively destroying the converter. Furthermore, the unburned fuel can coat the precious metals, reducing their effectiveness (poisoning).

3. Ensuring Accurate Air-Fuel Ratio Feedback:

As hinted above, the integrity of the exhaust path is vital for the oxygen sensors. A leak at the flex pipe corrupts the data from the upstream O2 sensor, as described. This faulty feedback loop not only harms the converter via rich mixture but also prevents the ECU from properly managing the engine for optimal combustion and emissions.

4. Influencing Engine Performance and "Check Engine" Lights:

A compromised flex pipe often triggers diagnostic trouble codes (DTCs). Common codes include:

P0420 / P0430: "Catalyst System Efficiency Below Threshold." This is a direct result of the converter being damaged or poisoned due to issues stemming from a flex pipe leak.

O2 Sensor Codes: Such as P0130-P0135 or P0150-P0155, indicating sensor circuit malfunctions or slow response, often caused by erratic readings from an exhaust leak.

Engine Misfire Codes: A severe exhaust leak can alter backpressure enough to affect engine scavenging, potentially causing rough idle or misfires, which further dump raw fuel into the exhaust, overheating the catalyst.

The Reverse Consideration: Can a Bad Catalytic Converter Damage the Flex Pipe?

While less common, a severely clogged or failing catalytic converter can indirectly damage the flex pipe. Excessive backpressure created by a blocked converter increases heat and pressure throughout the entire upstream exhaust system. This added thermal and pressure stress can accelerate the fatigue and failure of the flexible section, causing it to rupture from the inside out.

Maintenance Conclusion: An Inseparable Duo

The flex pipe and catalytic converter are symbiotically linked. A failing flex pipe is a leading cause of premature catalytic converter failure. Ignoring a broken flex pipe—evidenced by a loud rattling noise on startup, a roaring exhaust leak under acceleration, or visible damage—is a guarantee for a much more expensive repair bill for a new catalytic converter.

Proactive Tips:

Have your exhaust system inspected annually, especially the flex pipe, for signs of rust, cracking, or blowout.

Address any exhaust leak immediately, regardless of how small it seems.

If a flex pipe fails, replace it promptly to safeguard the catalytic converter and oxygen sensors.

Always use quality replacement parts; a cheap flex pipe may fail again quickly, putting the entire system at risk.

In summary, the flex pipe's role is not merely mechanical; it is a vital guardian of the catalytic converter's environment. By absorbing destructive forces and preserving a sealed, properly flowing exhaust stream, it ensures the catalytic converter can perform its critical emission-reducing duties effectively and for its intended lifespan.
