Expansion joints are used in piping systems to absorb thermal expansion or terminal movement where the use of expansion loops is undesirable or impractical. Expansion joints are available in many different shapes and materials.
Bellow you will find a short description of Metallic, Rubber and Teflon® joints.

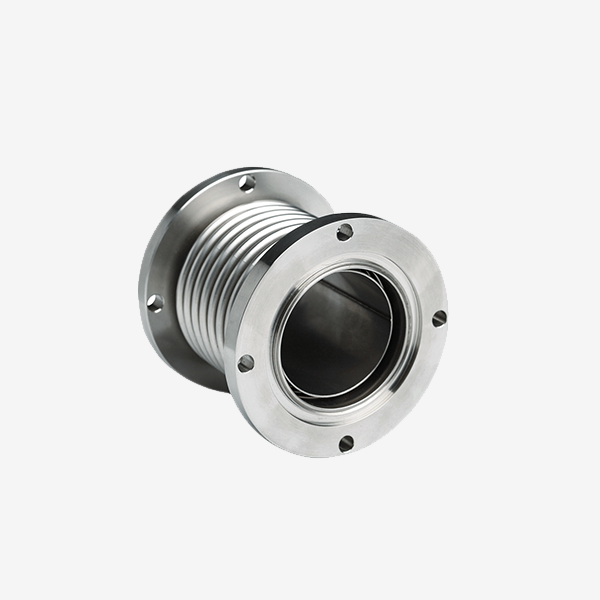

Metallic Expansion Joints are installed in pipe work and duct systems to prevent damage caused by thermal growth, vibration, pressure thrust and other mechanical forces.
There is a wide range of metallic bellows designs in a variety of materials. Options range from the simplest convoluted bellows used in petroleum refineries.
Materials include all types of stainless steels and high grade nickel alloy steels.
Any pipe connecting two points is subjected to numerous types of action which result in stresses on the pipe. Some of the causes of these stresses are:
internal or external pressure at working temperature
weight of the pipe it self and the parts supported on it
movement imposed on pipe sections by external restraints
thermal expansion
Rubber Expansion Joints are a flexible connector fabricated from natural or synthetic elastomers and fabrics with metallic reinforcements designed to provide stress relief in piping systems due to thermal changes.
When flexibility for this movement cannot be designed into the piping system itself, an expansion joint is the ideal solution. Rubber expansion joints compensate for lateral, torsional and angular movements preventing damage and undue downtime of plant operations.
The special construction of the rubber joints can solve problems like:
Vibration, Noise, Shock, Corrosion, Abrasion
Stresses, Load Stress, Equipment Movement
Vibration, Pressure Pulsation and Movement in a Piping System
Teflon® Expansion Joints corrosion proof, non-aging with extraordinary flex life and unmatched reliability.
The Teflon® expansion joint has a widespread acceptance in the chemical processing industry, piping applications where acids and highly corrosive chemicals are being handled and commercial heating and air conditioning systems as pump connectors and a strategic point throughout a system.
They can be used to compensate for:
• Movement, Misalignment, Axial Travel
• Angular Deflection, and or Vibration in Piping Systems
