Explore our new product of WELDED METAL BELLOW

Views: 8     Author: Alice Chen     Publish Time: 2017-03-31      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Specifications

Material

Corrosion Resistance

Operating Temperature(℃)

Yield Stress(kgf/cm2)

Characteristic

3 Series Austenitic Stainless Steel

Well

-250~800

2700

Widely used in various fields. Non-magnetic.

AM350

General

-73~420

4100

Widely used in general.  Magnetic.

Inconel 718

Excellent

-250~700

10300

High strength, heat resistance, corrosion resistance, resilience. Non-magnetic.

Inconel 625

Excellent

-250 ~ 810

4800

Require high strength and corrosion resistance of the environment. Non-magnetic.

Hastelloy C

Well

-250 ~ 980

3580

Anticorrosive very well, and may be suitable for high temperature.  Non-magnetic.


Functions

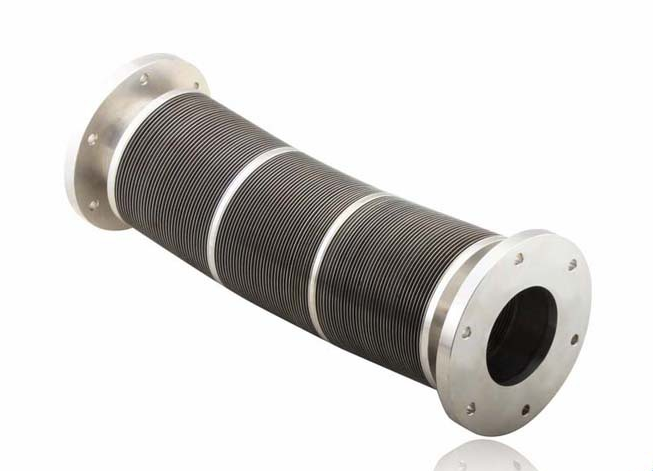

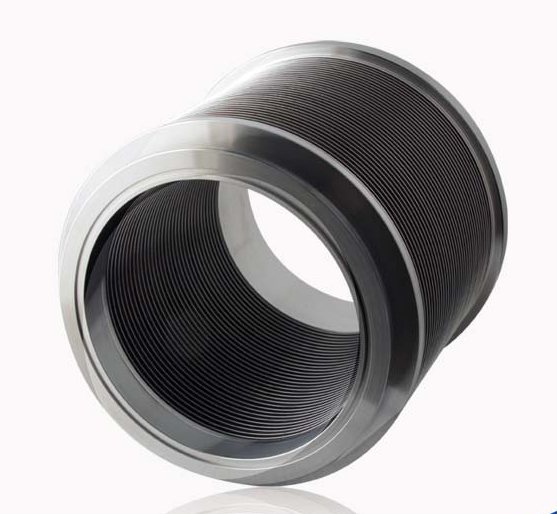

Welded Metal Bellows are mechanical elements taking a shape of a wrinkled tube which is made by welding multiple of very thin metal diaphragms formed by press machine. Its elastic characteristic enables movements on axis direction, angular direction, and horizontal/vertical directions yet maintaining airtight by isolating the interior from the exterior.

Welded metal bellows is used as sensitive components, sealing components , medium isolation, pipeline connection, temperature compensator, etc.



Product advantages

It has the advantages of  pressure resistance, heat resistance, corrosion resistance, well sealing, etc. Compared with the traditional bellows it has three prominent advantages: The amount of deformation is larger, Life cycles is longer, Mechanical linear is better.

Our welded metal bellows are engineered to allow for maximum flexibility in axial, angular and parallel offset motion. They provide a hermetic, all metal pressure barrier and seal that flexes in one or more directions.



Specifications

minimum inner diameter: ≥4mm

maximum outer diameter: ≤500 mm



Packaging & Delivery

Packaging Details:

Welded Bellows packed in Carton or according to customers' need for stainless steel metal welded bellows

Delivery Detail:

20-30 Days for stainless steel metal welded bellows
