How To Choose The Right Size of Exhaust Flex Pipe for Trucks?

A Comprehensive Guide to Choosing the Right Size Exhaust Flex Pipe for Your Truck

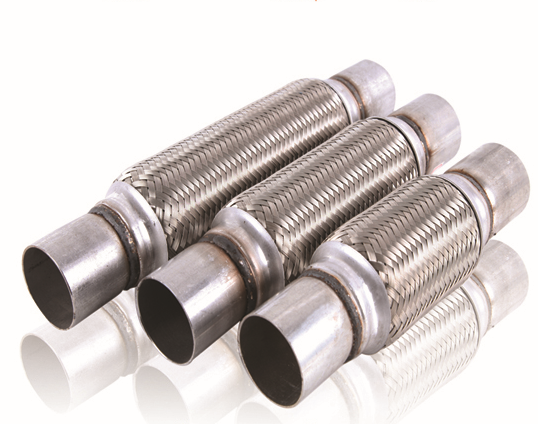

The exhaust system is the circulatory system of your truck's engine, responsible for expelling harmful gases and maintaining optimal performance. At the heart of a robust and durable exhaust setup, especially for vehicles subject to torque and movement, is the flex pipe. This flexible, bellows-like component absorbs engine movement, chassis flex, and vibrations, preventing stress cracks in rigid exhaust piping. Choosing the incorrect size can lead to immediate leaks, restricted flow, premature failure, and even engine damage. This guide will walk you through the critical steps to select the perfect fit.

Step 1: Understand the Critical Dimensions

Selecting the right size involves three primary measurements:

1.Inner Diameter (I.D.): This is the most crucial measurement. The I.D. of the flex pipe must match the outer diameter (O.D.) of the existing exhaust piping it will connect to. A mismatch here is the most common cause of installation failure.

2.Length: The flex section must be long enough to effectively absorb movement but not so long that it sags or contacts other components (like the driveshaft, frame, or fuel lines). Typically, for most pickup trucks and medium-duty trucks, lengths between 6 to 12 inches are common. Longer wheelbase or high-torque applications may require longer sections.

3.Braid Type & Material: While not a "size," this choice impacts durability. A 304 stainless steel braid is standard for corrosion resistance. For severe duty or high-heat applications (like turbo-downpipe locations), an inner liner or a heavier-duty braid may be necessary.

Step 2: The Measurement Process

Gather Your Tools: A caliper is ideal, but a flexible tape measure or a set of open-end wrenches for comparison can work.

1.Measure the Existing Pipe (Recommended Method):

Let the exhaust system cool completely.

Use your caliper or tape to measure the outer diameter (O.D.) of the straight section of pipe where the flex will be installed.

Example: If your exhaust pipe measures 3 inches O.D., you need a flex pipe with a 3-inch I.D.

2.Check the Old Flex Pipe (If Replacing):

If you're replacing a failed unit, it often has the size stamped on the metal end rings.

You can also carefully measure its I.D. for confirmation.

3.Determine Required Length:

Measure the gap in your exhaust system where the flex will sit. Consider any necessary overlap for clamping.

Account for engine movement. A good rule of thumb is that the flex pipe should be able to compress and extend by at least 1 inch in either direction from its resting position without being over-stretched or bottomed out.

Step 3: Key Considerations for the Right Fit

1.Engine Displacement & Exhaust System Size: Larger engines (e.g., diesel 6.7L, big-block V8) typically have larger diameter exhaust systems (3.5", 4", 5"). Never downsize the I.D., as it creates backpressure, robs power, and increases exhaust gas temperatures.

2.Application & Placement:

Manifold/Downpipe (Post-Turbo): This location experiences the highest heat and the most violent movement. Use a high-temperature, liner-style flex pipe with the correct I.D. to handle extreme EGTs.

Mid-System (After the Catalytic Converter): Heat is lower here. A standard stainless steel braided flex of appropriate length and I.D. is usually sufficient.

3.Truck Usage:

Daily Driver/Towing: Standard-duty flex pipe is adequate.

Off-Road/Heavy-Duty Hauling: Opt for a shorter, heavier-duty flex pipe to minimize sagging and vulnerability, and ensure it's well-shielded from debris.

Performance/Tuned Trucks: Match the flex I.D. to your performance exhaust system. Consider mandrel-bent connectors to maintain flow.

Step 4: Installation Tips to Ensure Success

1.Use Proper Clamps: Never use standard exhaust U-bolt clamps on a flex pipe. They can crush the braid. Always use band-style exhaust clamps or V-band clamps that apply even, circumferential pressure. The clamp size should match the O.D. of your exhaust pipe.

2.Ensure Proper Alignment: Install the flex pipe with a slight natural bend in its resting state. It should never be twisted or installed under tension. It must move freely.

3.Maintain Clearance: After installation, check for full clearance throughout the suspension's travel and during engine rock. Use heat shield wrap or protective loom if near wires or hoses.

Final Recommendation: When in doubt, consult with a reputable exhaust specialist or parts supplier. Provide them with your truck's year, make, model, engine, and whether the exhaust is stock or aftermarket. Investing 10 minutes in precise measurement and consideration will save you from the cost, downtime, and hazard of a failed exhaust flex pipe.

Choose wisely—your truck's performance and longevity depend on it.
