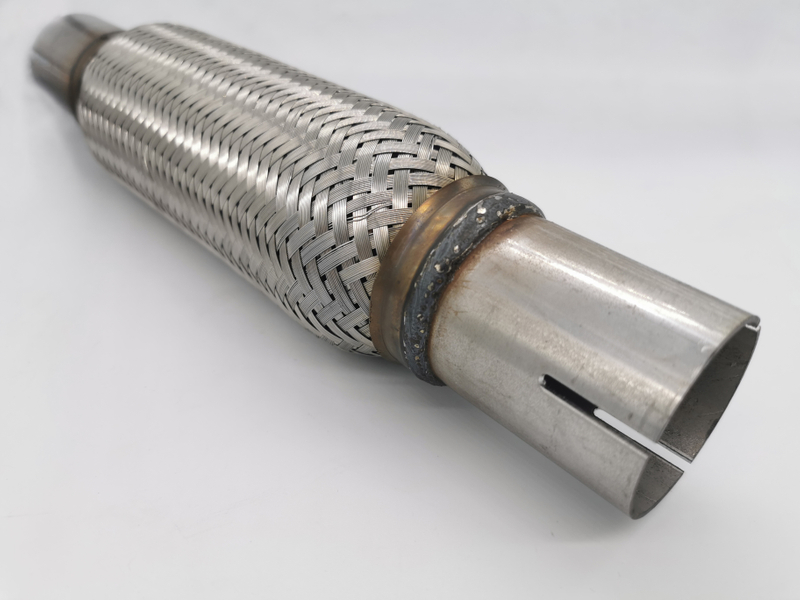

Flexible Exhaust Pipe with Interlock Extension Pipe with Slots

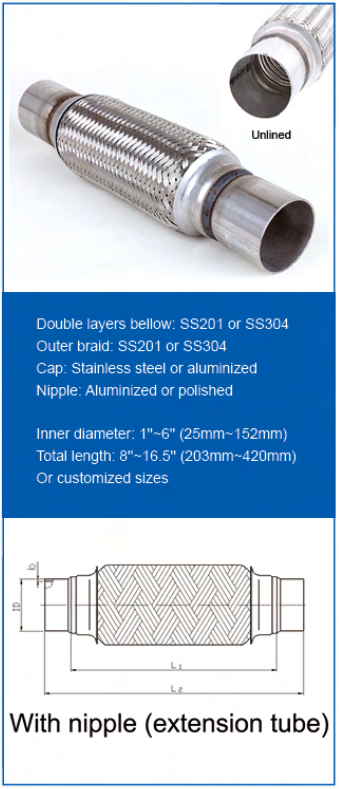

Exhaust flexible pipe:Outer braid+Double layer+inner interlock+extension pipe+pipe slots
Size:Od:1"~6" length:4"~17" or as requirement
Material:Ss 304, ss201 or as requirement
Feature:
Be installed between engine and muffler
Suitable for a wide range of tail pipe link
Can make parts with a high degree of flexibility
In particular, we increased the height of the bellows to
Enhance the effectiveness of vibration absorption
Be used to exhaust system and high-low temperature
Application:
Used to decrease engine noise and vibration
Absorbs muffler pipe thermal expansion and shock
Compensates for exhaust converter misalignment
| Name | Automotive High Temperature Flexible Exhaust Pipe Supplier |
| Material | stainless steel 201 or 304 |
| Size | ID:1"~6" Len:4"~17" or as requirement |
| Construction | bellow+double braid+cap |
| Outer braid | stainless steel,knitted by 12 units |
| Cap | stainless steel or aluminized |
| Working pressure | 0~5 Mpa |
| Temp range | 650~800 degrees |
| Minimum Order | 500 pieces |
| Packaging | each one with a PE bag , 25 pieces in a carton box as usual or as requirement |
| Payment Term | 30% deposit in advanced ,the balance paid against the copy of L/C |
