WXHY
| Availability: | |
|---|---|
| Quantity: | |
Product Details
| Part number | HYC |
| Size | ID:1"~6" Len:4"~17" or as requirement |

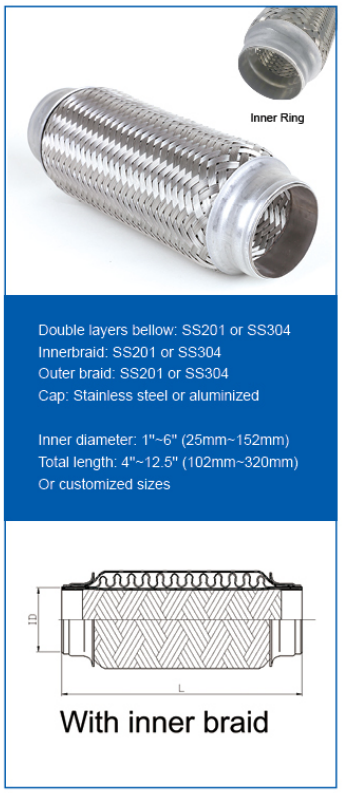

| Construction | bellows+outer braid+cap+(interlock or inner braid} |
| Body | stainless steel |
| Cap | stainless steel or aluminized |
| Outerbraid feature | more soft mesh |
| Working pressure | 0~5 Mpa |
| Temp range | 650~800 degrees |
| Minimum Order | 300 pieces |
| Warranty | 2~4 years |
| Applicable model | all types of vehicle |
| Packaging | 1 piece /PE bag , 25 pieces / carton, or as customer’s requirement |
| Payment Term | within 30days after we got 30% deposit of the goods |
Product Details
| Part number | HYC |
| Size | ID:1"~6" Len:4"~17" or as requirement |
| Construction | bellows+outer braid+cap+(interlock or inner braid} |
| Body | stainless steel |
| Cap | stainless steel or aluminized |
| Outerbraid feature | more soft mesh |
| Working pressure | 0~5 Mpa |
| Temp range | 650~800 degrees |
| Minimum Order | 300 pieces |
| Warranty | 2~4 years |
| Applicable model | all types of vehicle |
| Packaging | 1 piece /PE bag , 25 pieces / carton, or as customer’s requirement |
| Payment Term | within 30days after we got 30% deposit of the goods |
![]() | PART NO | SIZE (INCH) | SIZE (MM) |
HY15004B | 1-1/2x4 | 38x102 | |
HY15006B | 1-1/2x6 | 38x152 | |
HY15008B | 1-1/2x8 | 38x203 | |
HY15010B | 1-1/2x10 | 38x254 | |
HY17504B | 1-3/4x4 | 45x102 | |
HY17506B | 1-3/4x6 | 45x152 | |
HY17508B | 1-3/4x8 | 45x203 | |
HY17510B | 1-3/4x10 | 45x254 | |
HY20004B | 2x4 | 51x102 | |
HY20006B | 2x6 | 51x152 | |
HY20008B | 2x8 | 51x203 | |
HY20010B | 2x10 | 51x254 | |
HY22504B | 2-1/4x4 | 57x102 | |
HY22506B | 2-1/4x6 | 57x152 | |
HY22508B | 2-1/4x8 | 57x203 | |
HY22510B | 2-1/4x10 | 57x254 | |
HY23604B | 2-9/25x4 | 60x102 | |
HY23606B | 2-9/25x6 | 60x152 | |
HY23608B | 2-9/25x8 | 60x203 | |
HY23610B | 2-9/25x10 | 60x254 | |
HY25004B | 2-1/2x4 | 63.5x102 | |
HY25006B | 2-1/2x6 | 63.5x152 | |
HY25008B | 2-1/2x8 | 63.5x203 | |
HY25010B | 2-1/2x10 | 63.5x254 | |
HY30004B | 3x4 | 76x102 | |
HY30006B | 3x6 | 76x152 | |
HY30008B | 3x8 | 76x203 | |
HY30010B | 3x10 | 76x254 | |
HY35004B | 3-1/2x4 | 89x102 | |
HY35006B | 3-1/2x6 | 89x152 | |
HY35008B | 3-1/2x8 | 89x203 | |
HY35010B | 3-1/2x10 | 89x254 | |
HY40004B | 4x4 | 102x102 | |
HY40006B | 4x6 | 102x152 | |
HY40008B | 4x8 | 102x203 | |
HY40010B | 4x10 | 102x254 | |
HY50004B | 5x4 | 127x102 | |
HY50006B | 5x6 | 127x152 | |
HY50008B | 5x8 | 127x203 | |
HY50010B | 5x10 | 127x254 | |
HY60004B | 6x4 | 152x102 | |
HY60006B | 6x6 | 152x152 | |
HY60008B | 6x8 | 152x203 | |
HY60010B | 6x10 | 152x254 |
![]() | PART NO | SIZE (INCH) | SIZE (MM) |
HY15004B | 1-1/2x4 | 38x102 | |
HY15006B | 1-1/2x6 | 38x152 | |
HY15008B | 1-1/2x8 | 38x203 | |
HY15010B | 1-1/2x10 | 38x254 | |
HY17504B | 1-3/4x4 | 45x102 | |
HY17506B | 1-3/4x6 | 45x152 | |
HY17508B | 1-3/4x8 | 45x203 | |
HY17510B | 1-3/4x10 | 45x254 | |
HY20004B | 2x4 | 51x102 | |
HY20006B | 2x6 | 51x152 | |
HY20008B | 2x8 | 51x203 | |
HY20010B | 2x10 | 51x254 | |
HY22504B | 2-1/4x4 | 57x102 | |
HY22506B | 2-1/4x6 | 57x152 | |
HY22508B | 2-1/4x8 | 57x203 | |
HY22510B | 2-1/4x10 | 57x254 | |
HY23604B | 2-9/25x4 | 60x102 | |
HY23606B | 2-9/25x6 | 60x152 | |
HY23608B | 2-9/25x8 | 60x203 | |
HY23610B | 2-9/25x10 | 60x254 | |
HY25004B | 2-1/2x4 | 63.5x102 | |
HY25006B | 2-1/2x6 | 63.5x152 | |
HY25008B | 2-1/2x8 | 63.5x203 | |
HY25010B | 2-1/2x10 | 63.5x254 | |
HY30004B | 3x4 | 76x102 | |
HY30006B | 3x6 | 76x152 | |
HY30008B | 3x8 | 76x203 | |
HY30010B | 3x10 | 76x254 | |
HY35004B | 3-1/2x4 | 89x102 | |
HY35006B | 3-1/2x6 | 89x152 | |
HY35008B | 3-1/2x8 | 89x203 | |
HY35010B | 3-1/2x10 | 89x254 | |
HY40004B | 4x4 | 102x102 | |
HY40006B | 4x6 | 102x152 | |
HY40008B | 4x8 | 102x203 | |
HY40010B | 4x10 | 102x254 | |
HY50004B | 5x4 | 127x102 | |
HY50006B | 5x6 | 127x152 | |
HY50008B | 5x8 | 127x203 | |
HY50010B | 5x10 | 127x254 | |
HY60004B | 6x4 | 152x102 | |
HY60006B | 6x6 | 152x152 | |
HY60008B | 6x8 | 152x203 | |
HY60010B | 6x10 | 152x254 |
