Stainless Steel Flexible Exhaust Pipe Coupling for Generator
Home » Products » Exhaust Flexible Pipe » 1 Inch Flexible Exhaust Pipe » Stainless Steel Flexible Exhaust Pipe Coupling for Generator

Contact Us

Tel : +0086-510-88751037
Fax : +0086-510-88751857
Phone: +86-13961861273
Email: wxhy@huanyu-hose.com
Add : 5 Hanlin Rd Ganlu Town, Xishan, Wuxi, Jiangsu, China
Stainless Steel Flexible Exhaust Pipe Coupling for Generator Stainless Steel Flexible Exhaust Pipe Coupling for Generator
Stainless Steel Flexible Exhaust Pipe Coupling for Generator Stainless Steel Flexible Exhaust Pipe Coupling for Generator
Stainless Steel Flexible Exhaust Pipe Coupling for Generator Stainless Steel Flexible Exhaust Pipe Coupling for Generator

loading

Stainless Steel Flexible Exhaust Pipe Coupling for Generator

Share to:
sharethis sharing button
Exhaust flexible pipe is suitable for a wide range of exhaust system. The material of inner braid, outer braid and bellow can be SS201 or SS304. The inner diameter of the pipe for passenger car is 1inch~2.5inch in general. The inner diameter of the pipe for truck is 2.5inch~12inch in general.
  • WXHY

  • HY

Availability:
Quantity:

Product Details


Product name

Stainless Steel Flexible Exhaust Pipe Coupling for Generator

Material

Stainless steel 201 / 304

Size

1"~6" Len: 4"~17" or as requirement

ID 1 inch /25.4mm
L 100mm

Construction

Outer braid +double layers bellows+collar

Outer braid

Stainless steel, knitted by 12 units

Caps

Stainless steel or aluminized

Working pressure

0~5 Mpa

Temp range

650~800 degrees

Minimum Order

25 pieces (in total)

Packaging

1pc/PE bag, 25pcs/carton, cartons to pallet or as requirements.

Certification

 ISO9001

Payment term

T/T L/C D/P PAYPAL etc.

Warrenty

Two years

Our strength

1. Fast making the samples

2. Good price with first-class quality

3. Durable and long time service life

4. High effect for protecting exhaust system

5. Delivery on time

Notice

Please let usknow the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Photos or Samples to us.





UNIQUE:

1.We are the only company who has won the Manufacturing Excellence&Innovation Awards in China.

2.Our outer wire are custom-made,brighter than others,more aesthetically pleasing and anti-rust.

3.There is no difference on the surface of material SS304 and SS201 ,it needs to be tested with water or equipment.We ensure the quality of our products.

4.The biggest customer we've worked with has been more than 10 years.So long-term cooperation is our goal,we are sincerely to cooperate with your company.

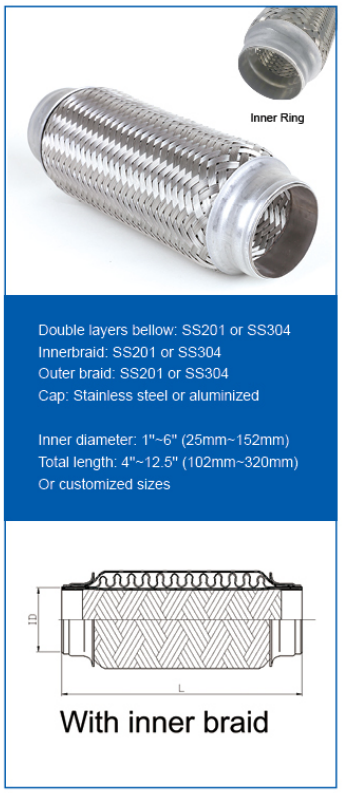

1. Product show

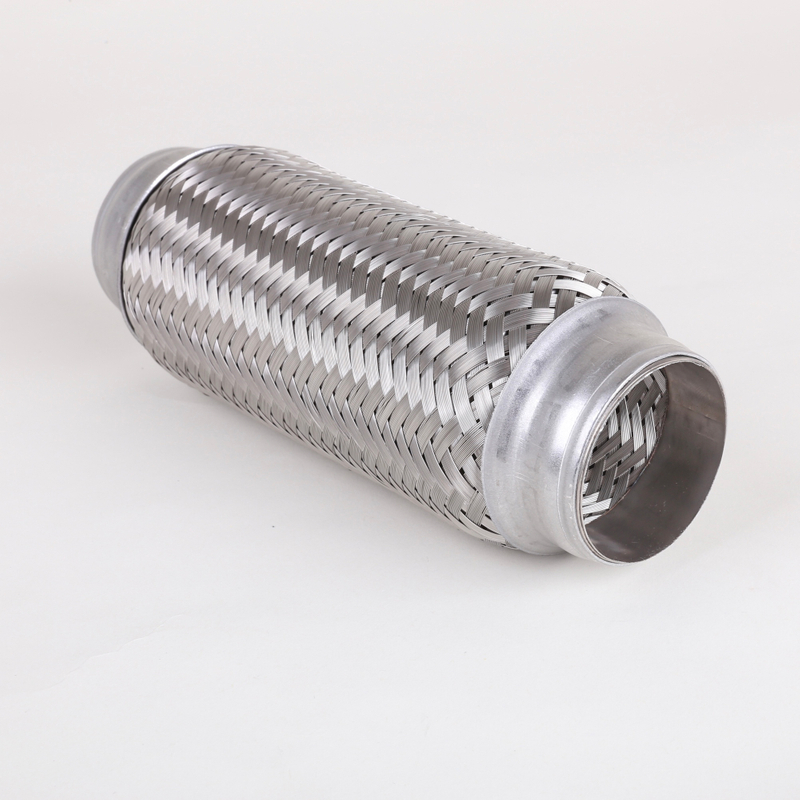

Braided exhaust flexible pipe for automotive-3


Structrue: Outer braid + double layers bellows + inner braid + collar

2. Characteristics of 1 inch braided hose
-1. Suitable for a wide range of the tail pipe link.
-2. We can make parts with a high degree of flexibility.
-3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption.
-4. This product is used in exhaust system and high-and low-temperature.
-5. It can decrease engine noise and vibration.


3. Company introduction
-1. Established in 2000, first and biggest manufacture in wuxi
-2. With two direct factories, with more than 18 years factory experience
-3. With own R&D department, develop new equipment by our own factory every year
-4. Passed ISO9001 and TS16949 certification
-5. Selling West Europe, North American, Southeast Asia, middle east and so on.
-6. About 80 workers and 20 millions sale amount every year

banner1-640-640


4. Trade FAQ

Minimun Order Quantity: 25 Pieces/carton  for one package
Delivery time: With 30 days after the seller receive the payment

Trade Term: FOB,CIF,EXW

Payment Term: T/T,L/C,Paypal,Western Union

Payment Condition: 30% deposit

Packing:Individual plastic bag with neutral carton, place on a pallet if needed

Shipping: By sea, by air and by express delivery
