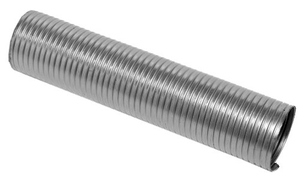

15mm Flexible Tube Coupling Manufacturer

15mm Flexible Tube Coupling Manufacturer

Name: 15mm Flexible Tube Coupling Manufacturer
Brand: WXHY
Rating: 5.0 (23 reviews)

1. Suitable for a wide range of the tail pipe link. 2. We can make parts with a high degree of flexibility. 3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption. 4. This product is used in exhaust system and high-and low-temperature. 5. It can decrease engine noise and vibration.

Model:
HYS
Brand:
WXHY
Code:
HYS

Availability:

Quantity:



Inquire Add to Basket

Product Details

Part number	HYS-2S/3S/4S
Material	stainless steel 201 or 304
Size	ID:1"~16" Len:/m or as requirement
Working pressure	0~5 Mpa
Temp range	650~900 degrees
Minimum Order	300 pieces
Warranty	2~4 years
Applicable model	all types of vehicle
Packaging	1 piece /PE bag , pieces / carton, or as customer’s requirement
Payment Term	within 30days after we got 30% deposit of the goods

15mm Flexible Tube Flexible Tube Coupling Flexible Tube Manufacturer 15mm Flexible Tube Coupling 15mm Flexible Tube Manufacturer Flexible Tube Coupling Manufacturer

Interlock
Part	ID(inch)	ID(mm)	OD(mm)	Material thickness
HYS0100	1''	25.4 +0.3	28.6 ±0.5	0.25
HYS0114	1 - 1/4''	31.75 +0.3	34.95 ±0.5	0.25
HYS0112	1 - 1/2''	38.1 +0.3	41.3 ±0.5	0.25
HYS0158	1 - 5/8''	41.28 +0.3	44.48 ±0.5	0.25
HYS0134	1 - 3/4''	44.45 +0.3	47.65 ±0.5	0.25
HYS0178	1 - 7/8''	47.63 +0.3	50.83 ±0.5	0.25
HYS0200	2''	50.8 +0.3	54 ±0.5	0.25
HTS0218	2 - 1/8''	53.98 +0.3	57.18 ±0.5	0.25
HYS0214	2 - 1/4''	57.15 +0.3	60.35 ±0.5	0.25
HYS0238	2 - 3/8''	60.33 +0.3	63.53 ±0.5	0.25
HYS0212	2 - 1/2''	63.5 +0.3	66.7 ±0.5	0.25
HYS0234	2 - 3/4''	69.85 +0.3	73.05 ±0.5	0.25
HYS0300	3''	76.2 +0.3	79.4 ±0.5	0.25
HYS0318	3 - 1/8''	79.38 +0.3	83.38 ±0.5	0.35
HYS0312	3 - 1/2''	88.9 +0.3	92.9 ±0.5	0.35
HYS0400	4''	101.6 +0.3	105.6 ±0.5	0.35
HYS0418	4 - 1/8''	104.78 +0.3	108.78 ±0.5	0.35
HYS0414	4 - 1/4''	107.95 +0.3	111.95 ±0.5	0.35
HYS0438	4 - 3/8''	111.13 +0.3	115.13 ±0.5	0.35
HYS0412	4 - 1/2''	114.3 +0.3	118.3 ±0.5	0.35
HYS0434	4 - 3/4''	120.65 +0.3	124.65 ±0.5	0.35
HYS0500	5''	127 +0.3	131 ±0.5	0.35
HYS0512	5 - 1/2''	139.7 +0.3	143.7 ±0.5	0.35
HYS0600	6''	152.4 +0.3	156.4 ±0.5	0.35
HYS0800	8''	203.2 +0.3	207.2 ±0.5	0.35
HYS1000	10''	254 +0.3	258 ±0.5	0.35
HYS1200	12''	304.8 +0.3	308.8 ±0.5	0.35

Interlock
Part	ID(inch)	ID(mm)	OD(mm)	Material thickness
HYS0100	1''	25.4 +0.3	28.6 ±0.5	0.25
HYS0114	1 - 1/4''	31.75 +0.3	34.95 ±0.5	0.25
HYS0112	1 - 1/2''	38.1 +0.3	41.3 ±0.5	0.25
HYS0158	1 - 5/8''	41.28 +0.3	44.48 ±0.5	0.25
HYS0134	1 - 3/4''	44.45 +0.3	47.65 ±0.5	0.25
HYS0178	1 - 7/8''	47.63 +0.3	50.83 ±0.5	0.25
HYS0200	2''	50.8 +0.3	54 ±0.5	0.25
HTS0218	2 - 1/8''	53.98 +0.3	57.18 ±0.5	0.25
HYS0214	2 - 1/4''	57.15 +0.3	60.35 ±0.5	0.25
HYS0238	2 - 3/8''	60.33 +0.3	63.53 ±0.5	0.25
HYS0212	2 - 1/2''	63.5 +0.3	66.7 ±0.5	0.25
HYS0234	2 - 3/4''	69.85 +0.3	73.05 ±0.5	0.25
HYS0300	3''	76.2 +0.3	79.4 ±0.5	0.25
HYS0318	3 - 1/8''	79.38 +0.3	83.38 ±0.5	0.35
HYS0312	3 - 1/2''	88.9 +0.3	92.9 ±0.5	0.35
HYS0400	4''	101.6 +0.3	105.6 ±0.5	0.35
HYS0418	4 - 1/8''	104.78 +0.3	108.78 ±0.5	0.35
HYS0414	4 - 1/4''	107.95 +0.3	111.95 ±0.5	0.35
HYS0438	4 - 3/8''	111.13 +0.3	115.13 ±0.5	0.35
HYS0412	4 - 1/2''	114.3 +0.3	118.3 ±0.5	0.35
HYS0434	4 - 3/4''	120.65 +0.3	124.65 ±0.5	0.35
HYS0500	5''	127 +0.3	131 ±0.5	0.35
HYS0512	5 - 1/2''	139.7 +0.3	143.7 ±0.5	0.35
HYS0600	6''	152.4 +0.3	156.4 ±0.5	0.35
HYS0800	8''	203.2 +0.3	207.2 ±0.5	0.35
HYS1000	10''	254 +0.3	258 ±0.5	0.35
HYS1200	12''	304.8 +0.3	308.8 ±0.5	0.35
