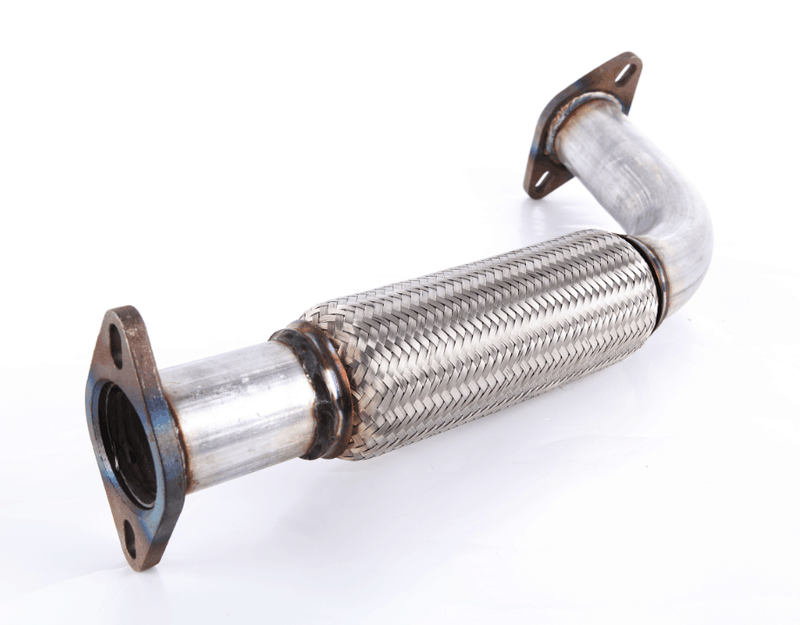

Small Engine Flexible Exhaust Pipe with Flange for Generator

Small Engine Flexible Exhaust Pipe with Flange for Generator

Name: Small Engine Flexible Exhaust Pipe with Flange for Generator
Brand: WXHY
Rating: 5.0 (55 reviews)

1. Suitable for a wide range of the tail pipe link. 2. We can make parts with a high degree of flexibility. 3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption. 4. This product is used in exhaust system and high-and low-temperature. 5. It can decrease engine noise and vibration.

Brand:
WXHY
Code:
HYBF

Availability:

Quantity:



Inquire Add to Basket

Product Details

Part number	HYBF
Size	ID:1"~6" or as requirement
Construction	Exhaust flexible pipe + bend pipe +( flange)
Exhaust flexible pipe	stainless steel
Bend pipe	stainless steel or aluminized
Working pressure	0~5 Mpa
Temp range	650~800 degrees
Minimum Order	300 pieces
Warranty	2~4 years
Applicable model	all types of vehicle
Packaging	1 piece /PE bag , pieces to carton, or as customer’s requirement
Payment Term	within 30days after we got 30% deposit of the goods

Small Engine Flexible Exhaust Pipe flexible exhaust pipe with flange Flexible Exhaust Pipe for Generator Small Engine Flexible Exhaust Pipe with Flange Small Engine Flexible Exhaust Pipe for Generator Flexible Exhaust Pipe with Flange for Generator

Exhaust Front Pipe
Inner Diameter (dm)	Outer Diameter (Body) (mm)	Outer Diameter (Woven mesh) (mm)	Minimum Bending Radius ≮ （mm)	Working Pressure (Mpa)	Nut Specificaion (mm)
Φ6	10.4~0.30	12~0.30	60	15	M 14 x 1.5
Φ8	12.4~0.30	14~0.30	80	12	M 16 x 1.5
Φ10	14.4~0.30	16~0.30	100	10.5	M 18 x 1.5
Φ12	16.4~0.30	18~0.30	120	10	M 20 x 1.5
Φ14	18.4~0.30	20.2~0.30	140	9	M 22 x 1.5
Φ15	20.4~0.20	22.2~0.30	150	9	M 24 x 1.5
Φ16	21.4~0.20	23.2~0.30	160	8.5	M 27 x 1.5
Φ18	23.4~0.20	25.2~0.30	180	8	M 30 x 1.5
Φ20	25.4~0.30	27.2~0.30	200	7.5	M 32 x 2 or flange
Φ22	29.3~0.30	31.2~0.30	220	7	M 36 x 2 or flange
Φ24	31.3~0.30	33.2~0.30	240	6.5	M 39 x 2 or flange
Φ25	32.3~0.30	34.2~0.30	250	6	M 39 x 2 or flange
Φ32	39.3~0.30	45.3~0.30	320	6	M 48 x 2 or flange
Φ38	45.3~0.30	47.5~0.30	380	5.5	M 55 x 2 or flange
Φ40	47.3~0.30	49.3~0.30	400	5	M 58 x 2 or flange
Φ42	49.3~0.30	51.3~0.30	420	4	M 60 x 2 or flange
Φ48	55.3~0.30	57.3~0.30	480	3.5	M 68 x 2 or flange
Φ50	57.3~0.30	59.3~0.30	500	3	M 70 x 2 or flange
Φ52	59.3~0.30	61.3~0.30	520	2.5	flange
Φ65	72.3~0.30	75.3~0.30	650	2.5	flange
Φ70	77.3~0.30	80.3~0.30	700	2.5	flange
Φ120	165.3~0.30	167.3~0.30	1200	2	flange
Φ250	300.3~0.30	367.3~0.30	2400	1	flange

Exhaust Front Pipe
Inner Diameter (dm)	Outer Diameter (Body) (mm)	Outer Diameter (Woven mesh) (mm)	Minimum Bending Radius ≮ （mm)	Working Pressure (Mpa)	Nut Specificaion (mm)
Φ6	10.4~0.30	12~0.30	60	15	M 14 x 1.5
Φ8	12.4~0.30	14~0.30	80	12	M 16 x 1.5
Φ10	14.4~0.30	16~0.30	100	10.5	M 18 x 1.5
Φ12	16.4~0.30	18~0.30	120	10	M 20 x 1.5
Φ14	18.4~0.30	20.2~0.30	140	9	M 22 x 1.5
Φ15	20.4~0.20	22.2~0.30	150	9	M 24 x 1.5
Φ16	21.4~0.20	23.2~0.30	160	8.5	M 27 x 1.5
Φ18	23.4~0.20	25.2~0.30	180	8	M 30 x 1.5
Φ20	25.4~0.30	27.2~0.30	200	7.5	M 32 x 2 or flange
Φ22	29.3~0.30	31.2~0.30	220	7	M 36 x 2 or flange
Φ24	31.3~0.30	33.2~0.30	240	6.5	M 39 x 2 or flange
Φ25	32.3~0.30	34.2~0.30	250	6	M 39 x 2 or flange
Φ32	39.3~0.30	45.3~0.30	320	6	M 48 x 2 or flange
Φ38	45.3~0.30	47.5~0.30	380	5.5	M 55 x 2 or flange
Φ40	47.3~0.30	49.3~0.30	400	5	M 58 x 2 or flange
Φ42	49.3~0.30	51.3~0.30	420	4	M 60 x 2 or flange
Φ48	55.3~0.30	57.3~0.30	480	3.5	M 68 x 2 or flange
Φ50	57.3~0.30	59.3~0.30	500	3	M 70 x 2 or flange
Φ52	59.3~0.30	61.3~0.30	520	2.5	flange
Φ65	72.3~0.30	75.3~0.30	650	2.5	flange
Φ70	77.3~0.30	80.3~0.30	700	2.5	flange
Φ120	165.3~0.30	167.3~0.30	1200	2	flange
Φ250	300.3~0.30	367.3~0.30	2400	1	flange
