Custom Double Braid Exhaust Flexible Pipe small engine Stainless Steel 1 inch Flexible Car Exhaust Pipe
Home » Products » Exhaust Flexible Pipe » 2 Inch Exhaust Fex Pipe » Custom Double Braid Exhaust Flexible Pipe small engine Stainless Steel 1 inch Flexible Car Exhaust Pipe

Contact Us

Tel : +0086-510-88751037
Fax : +0086-510-88751857
Phone: +86-13961861273
Email: wxhy@huanyu-hose.com
Add : 5 Hanlin Rd Ganlu Town, Xishan, Wuxi, Jiangsu, China
Custom Double Braid Exhaust Flexible Pipe small engine Stainless Steel 1 inch Flexible Car Exhaust Pipe Custom Double Braid Exhaust Flexible Pipe small engine Stainless Steel 1 inch Flexible Car Exhaust Pipe
Custom Double Braid Exhaust Flexible Pipe small engine Stainless Steel 1 inch Flexible Car Exhaust Pipe Custom Double Braid Exhaust Flexible Pipe small engine Stainless Steel 1 inch Flexible Car Exhaust Pipe

loading

Custom Double Braid Exhaust Flexible Pipe small engine Stainless Steel 1 inch Flexible Car Exhaust Pipe

Share to:
sharethis sharing button
Exhaust flexible pipe is suitable for a wide range of exhaust system. We can make parts with a high degree of flexibility. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption.
  • WXHY

  • HYC

Availability:
Quantity:

Product Details

Part number HYC
Size ID:1"~6"  Len:4"~17"   or as requirement
Construction bellows+outer braid+cap+(interlock or inner braid}
Body  stainless steel
Cap stainless steel or aluminized
Outerbraid feature more soft mesh
Working pressure 0~5 Mpa
Temp range 650~800 degrees
Minimum Order 300 pieces
Warranty  2~4 years
Applicable model all types of vehicle
Packaging 1 piece /PE bag , 25 pieces / carton, or as customer’s requirement
Payment Term within 30days after we got 30% deposit of the goods

UNIQUE:

1.We are the only company who has won the Manufacturing Excellence&Innovation Awards in China.

2.Our outer wire are custom-made,brighter than others,more aesthetically pleasing and anti-rust.

3.There is no difference on the surface of material SS304 and SS201 ,it needs to be tested with water or equipment.We ensure the quality of our products.

4.The biggest customer we've worked with has been more than 10 years.So long-term cooperation is our goal,we are sincerely to cooperate with your company.

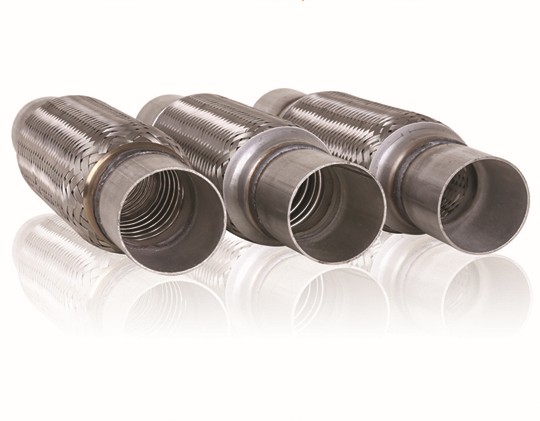

1. Product show

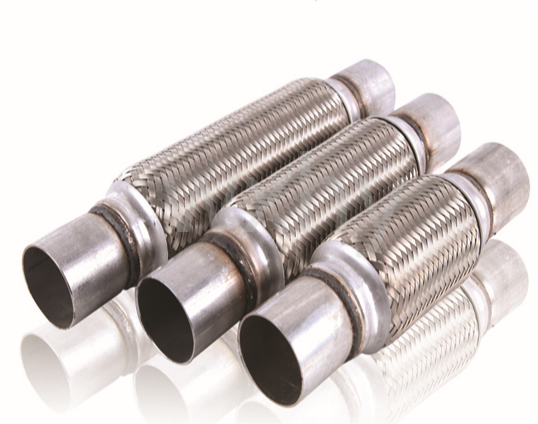

exhaust flex pipe

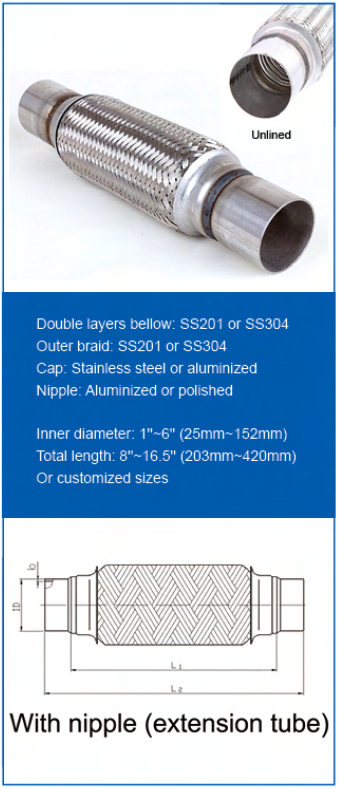

Structrue: Outer braid + double layers bellows + inner braid + collar

2. Characteristics of 2 inch flex pipe coupling
-1. Suitable for a wide range of the tail pipe link.
-2. We can make parts with a high degree of flexibility.
-3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption.
-4. This product is used in exhaust system and high-and low-temperature.
-5. It can decrease engine noise and vibration.

3. Company introduction
-1. Established in 2000, first and biggest manufacture in wuxi
-2. With two direct factories, with more than 18 years factory experience
-3. With own R&D department, develop new equipment by our own factory every year
-4. Passed ISO9001 and TS16949 certification
-5. Selling West Europe, North American, Southeast Asia, middle east and so on.
-6. About 80 workers and 20 millions sale amount every year

Wuxi Xishan Huanyu Metal hose-exhaust flex pipe


4. Trade FAQ

Minimun Order Quantity: 25 Pieces/carton  for one package
Delivery time: With 30 days after the seller receive the payment

Trade Term: FOB,CIF,EXW

Payment Term: T/T,L/C,Paypal,Western Union

Payment Condition: 30% deposit

Packing:Individual plastic bag with neutral carton, place on a pallet if needed

Shipping: By sea, by air and by express delivery

package for flexible pipe



Sexy Pipe
Part Size(inch) Size(mm)
HY15004C 1-1/2x4 38.6x102
HY15006C 1-1/2x6 38.6x152
HY15008C 1-1/2x8 38.6x203
HY15010C 1-1/2x10 38.6x254
HY17504C 1-3/4x4 45x102
HY17506C 1-3/4x6 45x152
HY17508C 1-3/4x8 45x203
HY17510C 1-3/4x10 45x254
HY20004C 2x4 51x102
HY20006C 2x6 51x152
HY20008C 2x8 51x203
HY20010C 2x10 51x254
HY22504C 2-1/4x4 57x102
HY22506C 2-1/4x6 57x152
HY22508C 2-1/4x8 57x203
HY22510C 2-1/4x10 57x254
HY25004C 2-1/2x4 63.5x102
HY25006C 2-1/2x6 63.5x152
HY25008C 2-1/2x8 63.5x203
HY25010C 2-1/2x10 63.5x254
HY30004C 3x4 76.2x102
HY30006C 3x6 76.2x152
HY30008C 3x8 76.2x203
HY30010C 3x10 76.2x254
HY35004C 3-1/2x4 89x102
HY35006C 3-1/2x6 89x152
HY35008C 3-1/2x8 89x203
HY35010C 3-1/2x10 89x254
HY40004C 4x4 102x102
HY40006C 4x6 102x152
HY40008C 4x8 102x203
HY40010C 4x10 102x254
HY50004C 5x4 127x102
HY50006C 5x6 127x152
HY50008C 5x8 127x203
HY50010C 5x10 127x254

Payments

    37d3d539b6003af380ab4b60352ac65c1038b699         a50f4bfbfbedab64ba8841e5f536afc379311e18       203fb80e7bec54e731a75837bb389b504fc26a4b         060828381f30e9245b089e524d086e061d95f721

       Western union                 T/T                    L/C                   Paypal



Delivery

 QQ图片20150714145943       QQ图片20150714150000       QQ图片20150714150215


          By sea                              By air                         By railway
1.Minimun Order Quantity:
 500 Pieces (under 500 is also available)

2.Delivery time:
With 30 days after the seller receive the 30% deposit in advance
Terms of Payment: 1.By TT (30%TT in advance,  the balance should be paid against the buyers  receive the copy of B/L} 2.L/C is  also available

3.How about the payment terms?
Usually, we support 30% payment in advance, the balance should be paid against the buyer receive the copy of B/L.

4.Can I get a sample?
For the first time, free samples can be provided for your evaluation, but the freight should be paid by the other side, please advise us your courier
 account/freight collect account, such as TNT, FedEx, DHL, UPS etc. Also we support Paypal to receive small payment.

5.What's the price?
Your order specifications are necessary for us to give you an accurate quotation. But we still can recommend some sizes for your market. Different
 items different market will be different cost, we will keep to give best and competitive price for each customer!
